Easiest air hose reels to use

Every reel stores a hose. What separates them is whether pulling it out, locking it at length and letting it back in is pleasant or a fight.

By Ryder M.Last updated Published

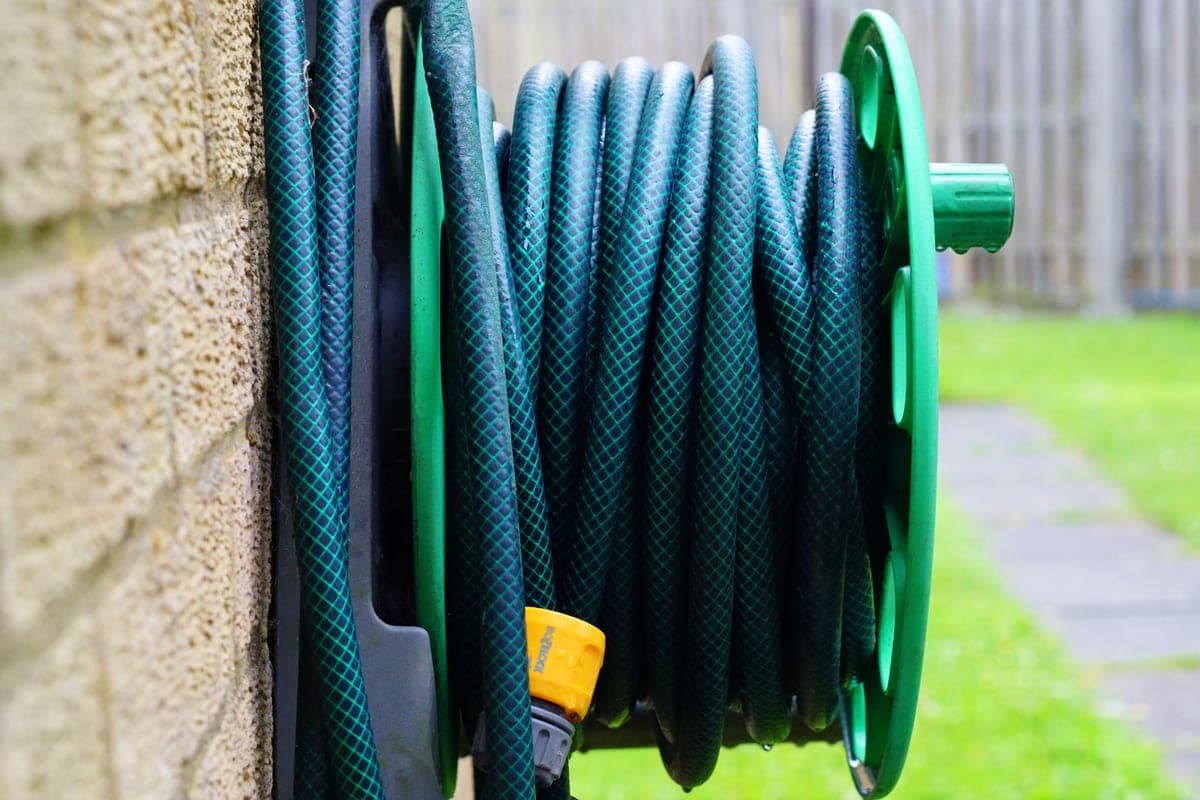

A wall-mounted hose reel with hose partly drawn out

Some links on this page are affiliate links. If you buy through one, Magoo Media Group earns a commission from the retailer at no extra cost to you. It never changes which product we rank first - how this site is funded.

What to shop on

The three mechanisms that decide it

Retraction speed. A conventional spring reel snaps 50 feet of hose back at whatever speed it can manage, which means you walk it in rather than letting go. Coxreels publishes retraction up to 80% slower on its EZ-Coil system - that single spec is the biggest usability difference in the category.

Levelwind. A guide that lays the hose evenly across the drum as it winds. Without it the hose piles on one side and binds partway out, which is the difference between a reel that works for years and one you stop using.

The ratchet. A multi-position release lets you lock the hose at any length rather than at fixed stops. Combined with an adjustable hose stopper, it is what stops the reel deciding how much hose you get.

Ranked

The picks

Quick picks

#ProductBest forScorePrice
1
A heavy steel spring-driven air hose reel mounted on a workshop wall
Coxreels EZ-P-LP-3503/8" ID x 50 ft / 300 PSI / EZ-Coil, up to 80% slower than conventionalMade in the USA, 300 PSI, and the EZ-Coil mechanism retracts up to 80% slower than a conventional reel.
A reel you fit once and never think about again8.0/10★★★★☆
Check price on Amazon

#ad Disclosure - we do not publish prices we cannot verify

2
A wall-mounted retractable air hose reel in a garage
Legacy L8305FZ Flexzilla reel3/8" ID x 50 ft Flexzilla / 300 PSI / 1/4" MNPT300 PSI retractable reel with levelwind, wall or ceiling mounted. Solves the only real hose problem: storage.
Getting 50 ft of hose off the floor permanently7.6/10★★★★☆
Check price on Amazon

#ad Disclosure - we do not publish prices we cannot verify

3
A polypropylene-cased retractable hose reel on a swivel wall bracket
ReelWorks retractable reel, 3/8 in x 50 ft3/8" ID x 50 ft hybrid polymer / 300 PSI / -40F to 176F300 PSI hybrid polymer hose on an enclosed polypropylene spring case - the format that made reels affordable.
Getting a hose off the floor without a professional-grade budget8.0/10★★★★☆
Check price on Amazon

#ad Disclosure - we do not publish prices we cannot verify

4
An industrial steel hose reel with a heavy gauge base and support post
Coxreels P-LP-3503/8" ID x 50 ft / 300 PSI / Solid one-piece heavy gauge 1/4" steel base and support postThe same American-made 300 PSI steel reel without the slow-retract mechanism, on a one-piece 1/4-inch steel base.
American-made build quality at the lowest Coxreels entry point8.0/10★★★★☆
Check price on Amazon

#ad Disclosure - we do not publish prices we cannot verify

Scores are computed from manufacturer-published specs by the rubric on our methodology page. Nothing here has been bench-tested, and we do not publish prices we cannot verify.

Pick 1 - Coxreels EZ-P-LP-350

8.0/10★★★★☆

Coxreels EZ-P-LP-350

Best for: A reel you fit once and never think about again

Verdict

Made in the USA, 300 PSI, and the EZ-Coil mechanism retracts up to 80% slower than a conventional reel.

What it does well

  • EZ-Coil retracts up to 80% slower than a conventional reel - the hose walks back instead of whipping
  • Solid brass 90-degree full-flow NPT swivel inlet, so the reel is not the restriction in the line
  • Made in the U.S.A., with CNC robotically spun and ribbed steel discs with rolled edges

What it will not do

  • Costs several times what a polypropylene consumer reel does
  • Heavy professional-grade steel - this is a permanent wall or ceiling installation, not something you reposition
How this 8.0 was calculated
MetricScoreWeightBasis
Pressure headroom10.040%300 PSI rating, on a 125-300 PSI scale
Flow capacity6.040%Flow not published for this class - scored a 6, which is what a correctly sized hose or fitting does not restrict
Spec transparency8.020%6 published specification figures
A heavy steel spring-driven air hose reel mounted on a workshop wall

Licensed stock photo - illustrative of the category, not a photo of this unit

Check price on Amazon

#ad Disclosure - we do not publish prices we cannot verify

Published specs

Coxreels EZ-P-LP-350 published specifications
Hose3/8" ID x 50 ft
Max pressure300 PSI
RetractionEZ-Coil, up to 80% slower than conventional
SwivelSolid brass 90-degree full-flow NPT inlet
Dimensions6.75" W x 18.63" H x 17.13" L
OriginMade in the U.S.A.

Source: Coxreels EZ-P Series (EZ-P-LP-350) - product specifications

Pick 2 - Legacy L8305FZ

7.6/10★★★★☆

Legacy L8305FZ Flexzilla reel

Best for: Getting 50 ft of hose off the floor permanently

Verdict

300 PSI retractable reel with levelwind, wall or ceiling mounted. Solves the only real hose problem: storage.

What it does well

  • 300 PSI max, matching the Flexzilla hose it ships with
  • Levelwind guides the hose on evenly, which is what stops a reel jamming at 40 ft
  • Seven-position locking bracket, and it mounts to wall, ceiling or its own base

What it will not do

  • Spring-retract reels are the most common failure point in a garage air setup
  • Costs more than the hose it holds; a cheap wall hook does 80% of the job for 5% of the price
How this 7.6 was calculated
MetricScoreWeightBasis
Pressure headroom10.040%300 PSI rating, on a 125-300 PSI scale
Flow capacity6.040%Flow not published for this class - scored a 6, which is what a correctly sized hose or fitting does not restrict
Spec transparency6.020%5 published specification figures
A wall-mounted retractable air hose reel in a garage

Licensed stock photo - illustrative of the category, not a photo of this unit

Check price on Amazon

#ad Disclosure - we do not publish prices we cannot verify

Published specs

Legacy L8305FZ Flexzilla reel published specifications
Hose3/8" ID x 50 ft Flexzilla
Max pressure300 PSI
Outlet1/4" MNPT
Hose temperature range-40F to 140F
MountingWall, ceiling or freestanding base; 7-position locking bracket

Source: Legacy L8305FZ Flexzilla retractable hose reel - distributor specification listing

Pick 3 - ReelWorks 3/8" x 50 ft hybrid polymer

8.0/10★★★★☆

ReelWorks retractable reel, 3/8 in x 50 ft

Best for: Getting a hose off the floor without a professional-grade budget

Verdict

300 PSI hybrid polymer hose on an enclosed polypropylene spring case - the format that made reels affordable.

What it does well

  • 300 PSI hybrid polymer hose rated -40F to 176F, so it stays usable in an unheated garage
  • Enclosed spring case, 180-degree swivel bracket and a 36-inch lead-in hose
  • Multi-position release ratchet with an adjustable hose stopper and non-snag rollers

What it will not do

  • Polypropylene drum rather than steel - lighter, and less tolerant of being hit
  • Conventional retraction speed: guide it back rather than letting it go
How this 8.0 was calculated
MetricScoreWeightBasis
Pressure headroom10.040%300 PSI rating, on a 125-300 PSI scale
Flow capacity6.040%Flow not published for this class - scored a 6, which is what a correctly sized hose or fitting does not restrict
Spec transparency8.020%6 published specification figures
A polypropylene-cased retractable hose reel on a swivel wall bracket

Licensed stock photo - illustrative of the category, not a photo of this unit

Check price on Amazon

#ad Disclosure - we do not publish prices we cannot verify

Published specs

ReelWorks retractable reel, 3/8 in x 50 ft published specifications
Hose3/8" ID x 50 ft hybrid polymer
Max pressure300 PSI
Hose temperature range-40F to 176F
Connections1/4" NPT
CaseEnclosed spring-driven polypropylene
Mounting180-degree swivel bracket, 36 in lead-in hose

Source: ReelWorks retractable air hose reels - distributor specification listing

Pick 4 - Coxreels P-LP-350

8.0/10★★★★☆

Coxreels P-LP-350

Best for: American-made build quality at the lowest Coxreels entry point

Verdict

The same American-made 300 PSI steel reel without the slow-retract mechanism, on a one-piece 1/4-inch steel base.

What it does well

  • Solid one-piece heavy gauge 1/4" steel base and support post
  • Same solid brass 90-degree full-flow NPT swivel inlet as the EZ-Coil model
  • Made in the U.S.A.

What it will not do

  • No EZ-Coil - it retracts at conventional speed, so you walk it back rather than letting go
  • Still a professional-grade price for a garage that only uses a hose occasionally
How this 8.0 was calculated
MetricScoreWeightBasis
Pressure headroom10.040%300 PSI rating, on a 125-300 PSI scale
Flow capacity6.040%Flow not published for this class - scored a 6, which is what a correctly sized hose or fitting does not restrict
Spec transparency8.020%6 published specification figures
An industrial steel hose reel with a heavy gauge base and support post

Licensed stock photo - illustrative of the category, not a photo of this unit

Check price on Amazon

#ad Disclosure - we do not publish prices we cannot verify

Published specs

Coxreels P-LP-350 published specifications
Hose3/8" ID x 50 ft
Max pressure300 PSI
BaseSolid one-piece heavy gauge 1/4" steel base and support post
SwivelSolid brass 90-degree full-flow NPT inlet
Dimensions6.75" W x 18.63" H x 17.13" L
OriginMade in the U.S.A.

Source: Coxreels P Series (P-LP-350) - product specifications

Context matters

Mounting height changes the answer

Most reels get mounted high - on a wall above a bench or on the ceiling - because that is where a hose is out of the way. That is also where fast retraction stops being a minor annoyance and becomes something you flinch at, because the hose end travels above head height.

If your reel is going up high or in a shared space, slow retraction is the spec to buy. If it is at waist height in a corner of a private garage, it matters much less and a conventional reel is perfectly pleasant.

The other height-related point: whatever you buy, mount it into structure rather than drywall. A reel with 50 feet of pressurized hose is heavy and gets pulled sideways every time you draw hose out.

Published usability mechanisms
ReelRetractionLevelwindRatchet
Coxreels EZ-P-LP-350EZ-Coil, up to 80% slowerNot publishedAdjustable solid rubber hose stop
Legacy L8305FZConventionalYes, levelwind7-position locking bracket
ReelWorks 3/8 in x 50 ftConventionalNon-snag rollersMulti-position release, adjustable stopper
Coxreels P-LP-350ConventionalNot publishedAdjustable hose stop

No single reel here publishes all three. That is the honest state of the category rather than an omission on our part.

Free improvement

The thing that makes any reel easier

Get the mounting angle right. The Legacy reel publishes a seven-position locking bracket for exactly this reason: the correct angle is rarely straight out from the wall, and a reel aimed at where you actually work pulls out and retracts far more cleanly than one aimed across the room.

Keep the lead-in hose short and the run unobstructed. A reel fighting its way around a corner or over a bench edge will wind unevenly no matter what mechanism it has.

And do not over-extend it. Every reel here has an adjustable stopper; setting it so the hose never reaches the bare drum protects the spring and keeps retraction consistent.

FAQ

Questions people actually ask

What is the easiest air hose reel to use?

One with slow retraction, because that is what lets you release the hose instead of walking it back. Coxreels publishes up to 80% slower retraction for its EZ-Coil system, which is the largest usability difference in the category.

What is levelwind on a hose reel?

A guide that lays the hose evenly across the drum as it retracts, so it does not pile on one side and jam partway out. It is the feature that most determines whether a reel still works in three years.

Why is my hose reel hard to pull out?

Usually the hose binding from uneven winding, or the reel mounted at an angle that fights the direction you pull. A multi-position mounting bracket exists to fix the second; levelwind addresses the first.

Are slow-retract reels worth it?

If the reel is mounted high or in a shared space, genuinely yes - 50 feet of hose with a metal fitting retracting at full spring speed is a whip. At waist height in a private garage it matters much less.

How do I stop a hose reel jamming?

Set the adjustable hose stopper so the hose never fully retracts into the drum, mount the reel at the angle you actually pull from, and keep the run clear of corners and bench edges that force uneven winding.

Sources

Where these numbers come from

Accessed September 2026. If a figure on this page does not match the manufacturer's current sheet, tell us at contact@psiandhose.com and we will correct and date the change - see our editorial policy.
